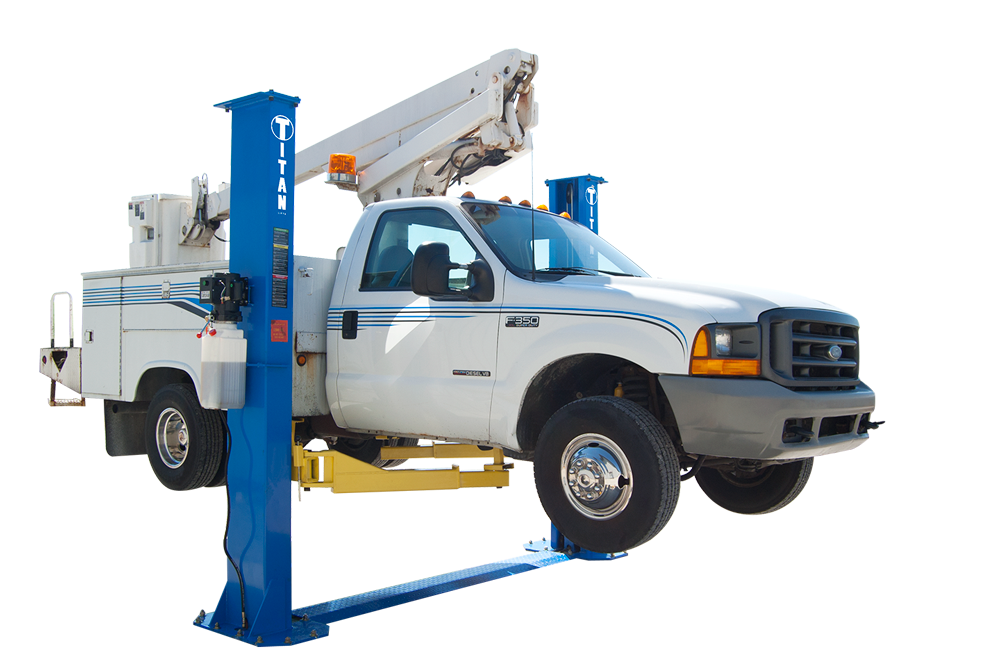

Titan HD2P-12000F 2-Post Lift
SKU 00055
$6 499.00
Sold out
Sold out
Product Details
The Titan 12,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you'd expect from a quality lift.
They come in a durable scratch resistant Cobalt Blue powder-coated finish. The Titan 12,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 6 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.
Features
- Free mounting hardware
- Low profile arm restraints
- Durable powder coat finish
- "Big Foot" base plates for extra stability
- Dual 3" cylinders with low friction chain rollers
- 1 Year Electric/Hydraulic Warranty
- 5 Year Structural Warranty
SPECIFICATIONS
| Overall Height | 122" |
|---|---|
| Overall Width | 148" |
| Width Between Post | 120.25" |
| Drive-Thru | 107.5" |
| Min Pad Height | 5" |
| Max Pad Height | 76.5" |
| Lifting Speed | 60 sec |
| Lifting Capacity | 12,000 lb |
| Concrete Spec Min | 6" @ 3,000 PSI |
| Power Unit | 220V-1PH-60HZ-20AMP |
SHIPPING
| Shipping Length | 126" |
|---|---|
| Shipping Width | 35" |
| Shipping Height | 53" |
| Shipping Weight | 2,500 lb |
